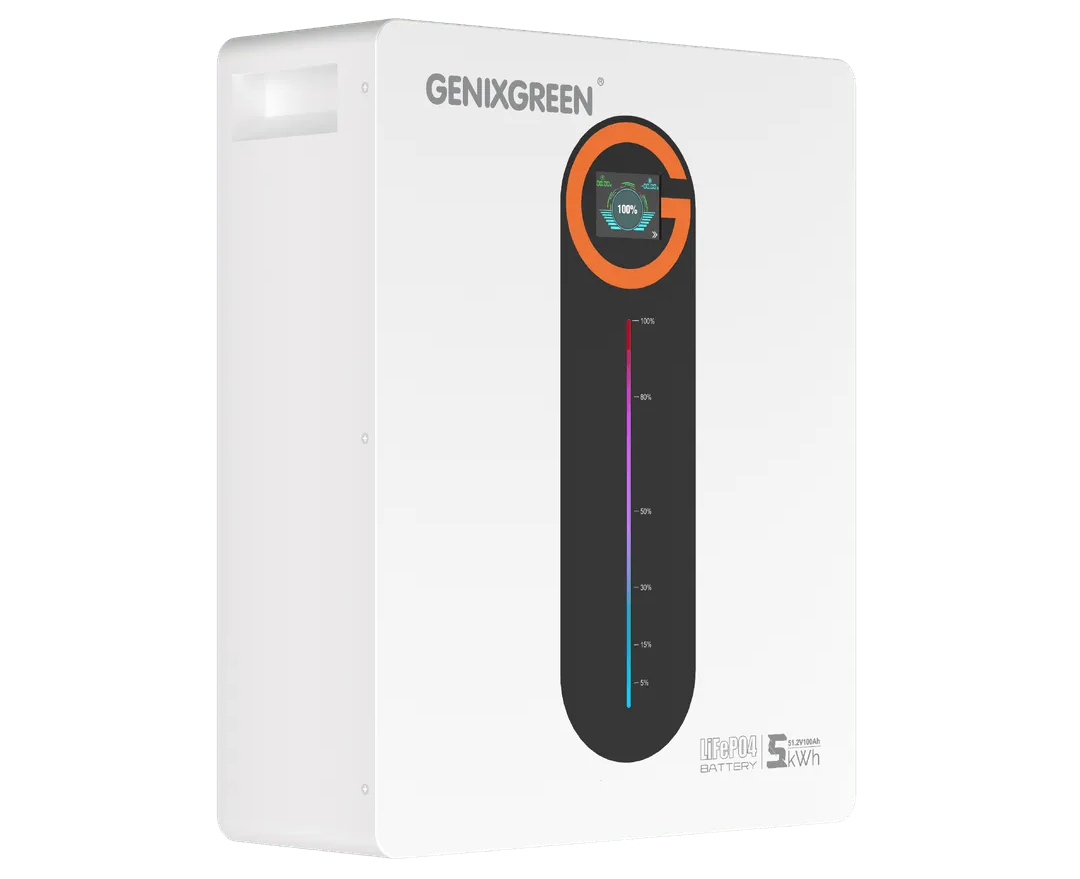

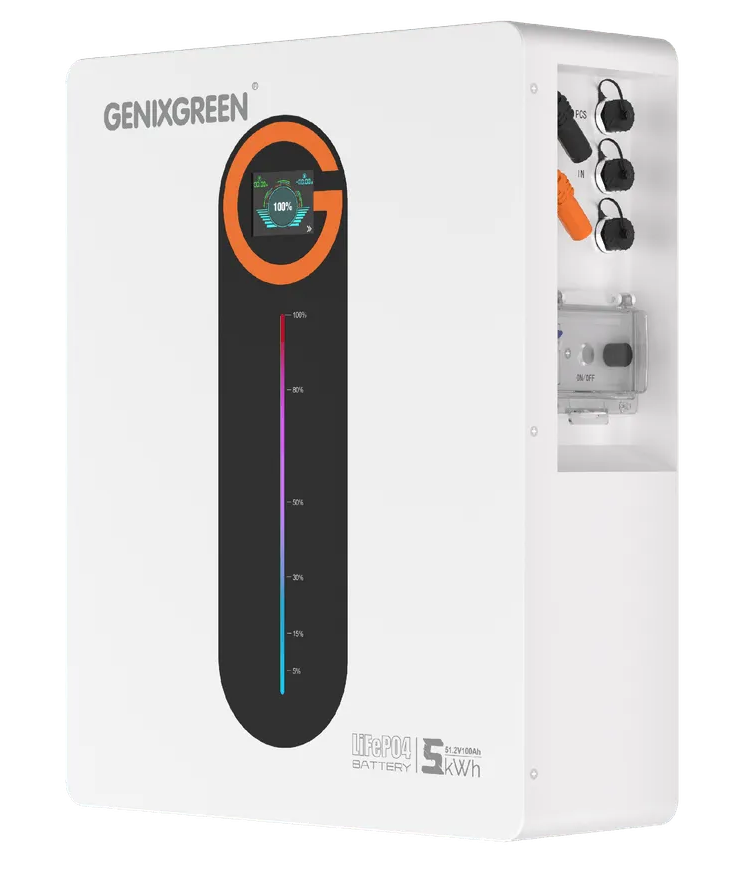

GENIXGREEN ES-BOX12F Series 5 kWh (LV) Battery

SKU:

BAT-GGX-5K

The ES-BOX12 GENIXGREEN is a LiFePO4 lithium battery that delivers reliable and stable performance thanks to high cell consistency and low internal resistance. Its large capacity and support for intensive charge/discharge cycles make the system highly effective for both short-term backup and long-term off-grid power supply.

Submit an inquiry

[data-wf-bgvideo-fallback-img] { display: none; } @media (prefers-reduced-motion: reduce) { [data-wf-bgvideo-fallback-img] { position: absolute; z-index: -100; display: inline-block; height: 100%; width: 100%; object-fit: cover; } }

GENIXGREEN ES-BOX12F Series 5 kWh (LV) Battery

No items found.

Model:	ES-BOX12F MAX+ B11
Nominal Energy Capacity:	16.08 kWh
Nominal Voltage:	51.2V
Battery Capacity:	314 Ah
Max. Continuous Charge/Discharge Current:	200A
Communication:	RS485, RS232, CAN
Protection Degree:	IP65

File with detailed information

GENIXGREEN ES-BOX12F MAX+ Battery — Specifications:
Basic Parameters
Battery Type:	LiFePO4 (LFP)
Nominal Energy:	16.08 kWh
Nominal Capacity:	314 Ah
Nominal Voltage:	51.2 V
Charge Voltage:	56.8 V
Minimum Voltage:	44.8 V
Current Ratings
Max. Charge/Discharge Current:	200 A
Rate:	1C / 1C
Scalability
Parallel Connection:	Up to 64 Units
Maximum System Capacity:	Up to 1 MWh (Theoretical)
Operating Conditions
Depth of Discharge (DOD):	90%
Cycle Life:	8000 Cycles (0.5C) / Up to 10000 Cycles (0.35C)
Charging Temperature:	0°C ~ +55°C
Discharging Temperature:	-20°C ~ +55°C
Storage Temperature:	-20°C ~ +60°C
Features
BMS:	Smart BMS
Communication:	RS485 / RS232 / CAN
Monitoring:	WiFi
Indicators:	RGB LED + SOC Display
Protection
Protection Rating:	IP65
Certifications:	CE / IEC62619 / UL1973 / UN38.3
Physical Parameters
Dimensions:	490 × 840 × 250 mm
Weight:	128 kg
Other
Installation Type:	Floor-mounted (with wheels)
Warranty:	10 Years
